Product Overview

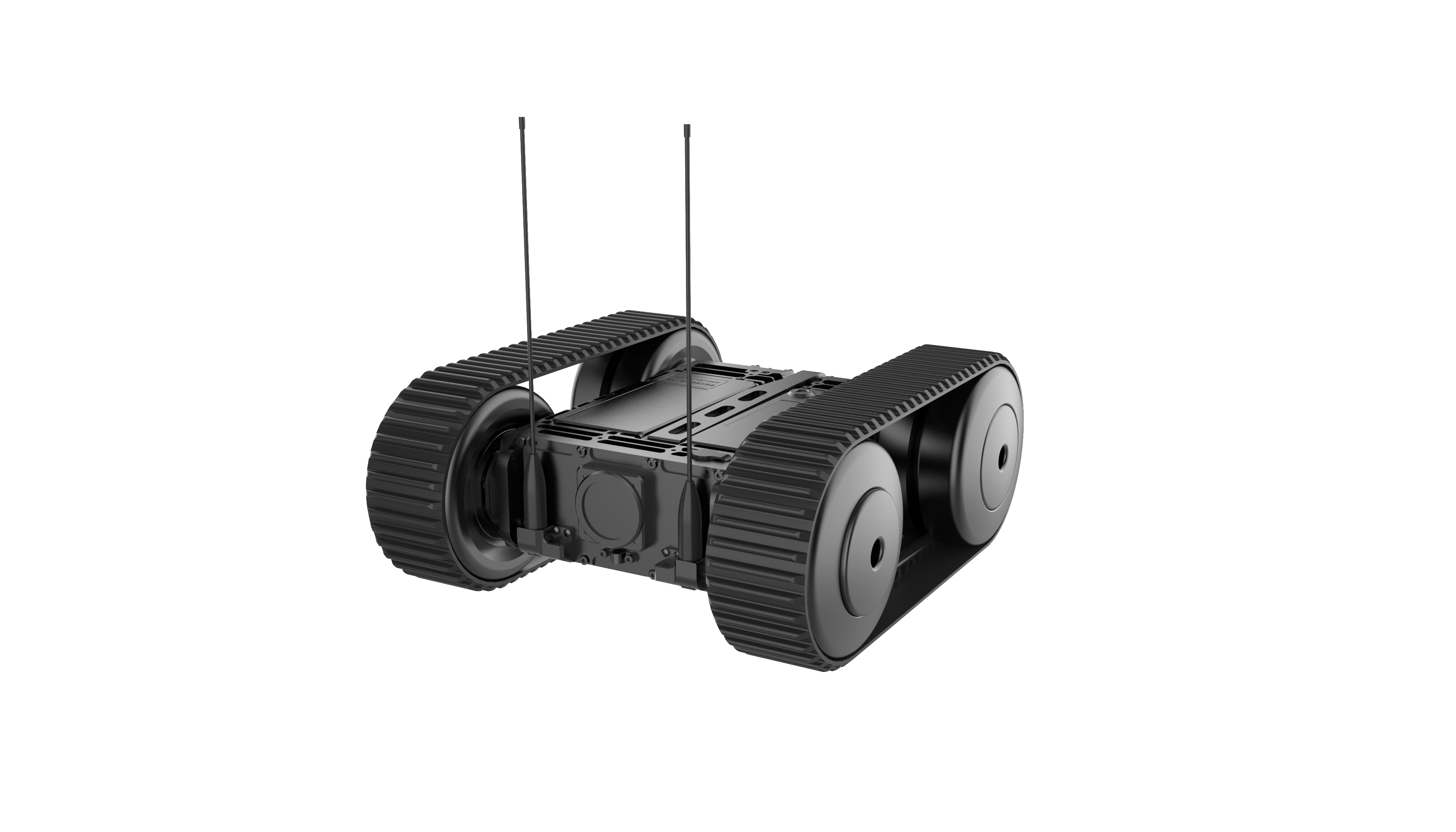

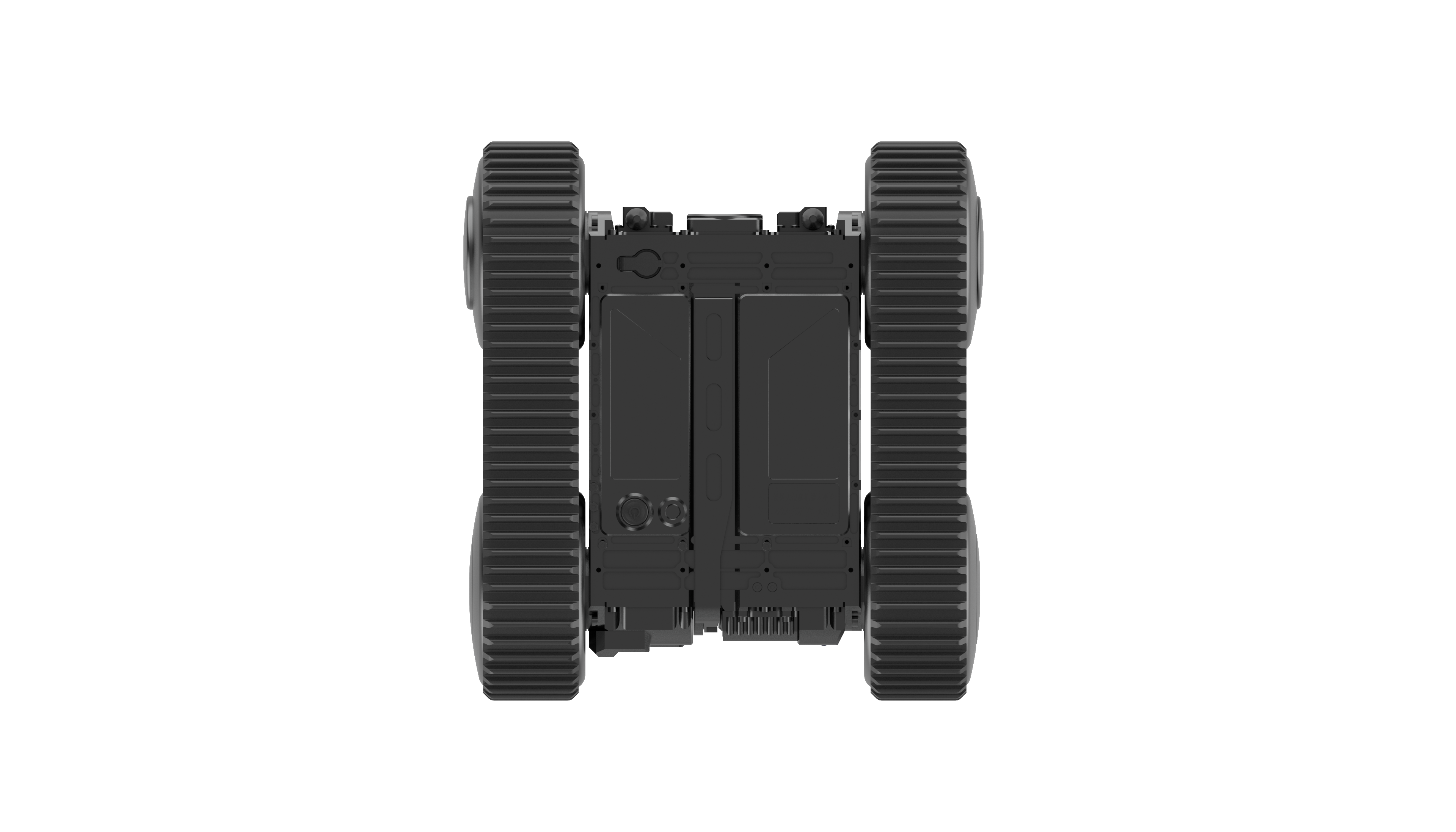

R30S is a small wheel-track composite reconnaissance robot that can be thrown into the target area or break into the building through the window to perform reconnaissance tasks. Its tracked design can adapt to a variety of complex ground surfaces, ensuring that it can move freely in underground pipes, caves, jungles, and grasslands. It adopts a unique "dual vision" design, with a thermal imaging camera at the front and a visible light camera at the rear, to meet the reconnaissance needs during the day and night and in total darkness. In addition, its unique auxiliary support arm can help it quickly flip the body in an overturned state.
Features
Wheel-track composite design

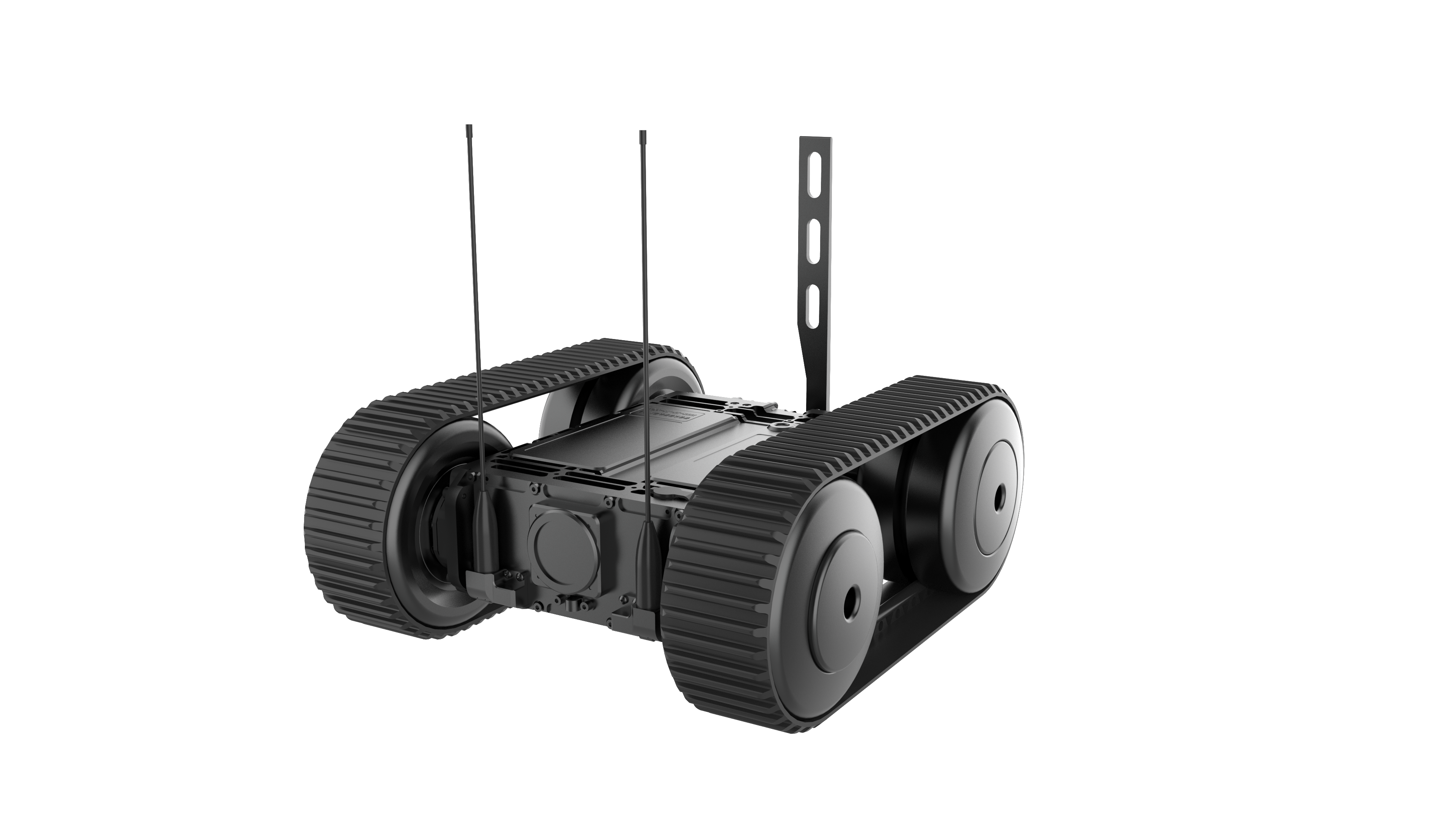

"Front and rear dual vision" reconnaissance Unique auxiliary arm
Super strong impact resistance
Super high protection level
Function
IR modes: white hot, black hot, pseudo color and outline
EO / IR dual-mode observation
PIP（picture in picture）
Audio Recording
IR illumination
Photography and video recording
3-speed gear shifting
Specifications
Robot
Dimension:≤260×90×90mm
Weight：≤3kg
Daytime：The features of people can be seen clearly at 20 meters,and the outlines of people can be seen clearly at 50 meters
Night：The features of people can be seen clearly at 10 meters, and the outlines of people can be seen clearly at 25 meters
FOV：≥60°
Obstacle Crossing：≥10cm
Climbing Angle：≥35°
Anti-drop Height：≥4m
Battery Life：≥2h
CCD Resolution：1/3in，720×576
IR Sensor：384×288@17µm

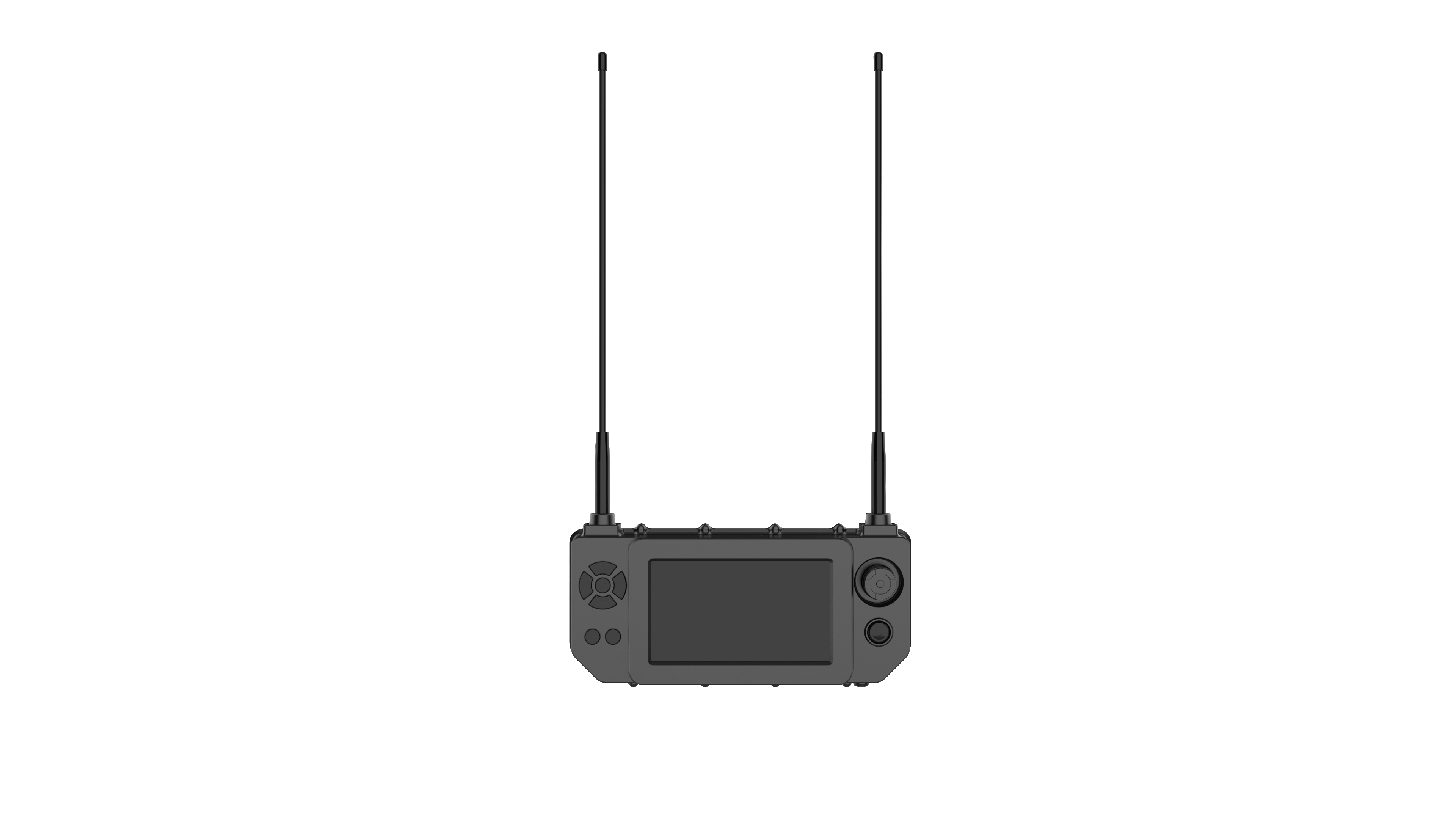

Controller
Battery Life：≥3.5h
Weight：≤1.2kg
Storage Capacity ：32G
Control Method：Joystick + Button
Remote Control
Indoor：≥50m
Outdoor：≥350m
Environmental Adaptability
Operating Temperature：－40℃～+55℃
Protection Grade：IP66
