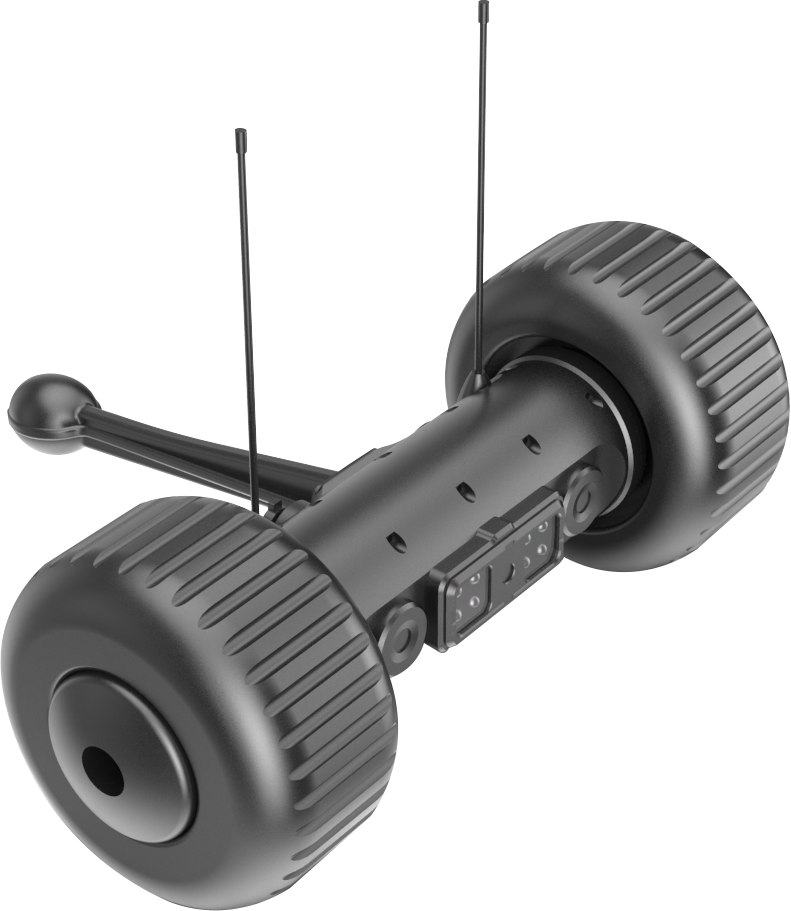

R10 TinyMole Micro Scout Robot

Product Overview

R10 is a throwable miniature wheeled robot. Its shape is similar to a "dumbbell". It has a very compact structure and is easy for one person to carry. It can be thrown into spaces where medium and large robots cannot operate to perform reconnaissance and surveillance missions.

Features

Compact structure, lightweight design

Super strong impact resistance

Can be used day and night

Silent reconnaissance

Excellent environmental adaptability

Function

Video surveillance

Audio monitoring

Digital image magnification

IR auxiliary lighting

Photography and video recording

Specifications

Robot

Dimension:≤260×90×90mm

Weight:≤1kg

Battery Life:≥2h

Maximum Throw Distance:9m (V) ,20m (H)

Maximum Climbing Angle:25°

Speed:≥0.65m/s

IR Illumination:≥7m

Daytime Identification Distance:≥40m (Human)

Monitoring Capability:Under the condition that the ambient noise is no more than 45 decibels, the voice conversation information of 60 decibels can be heard clearly within 3 meters

Camera Resolution:2560×1440

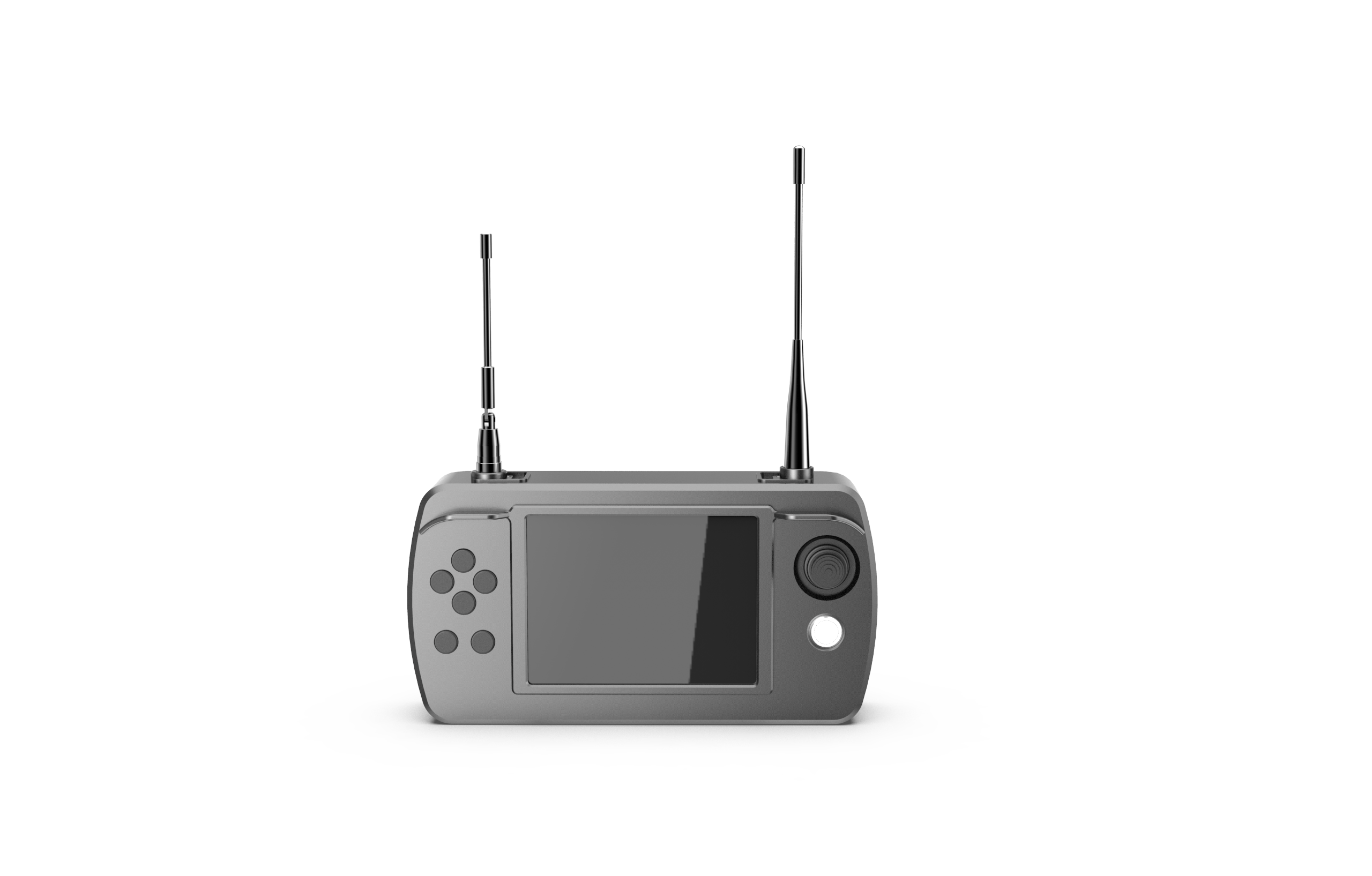

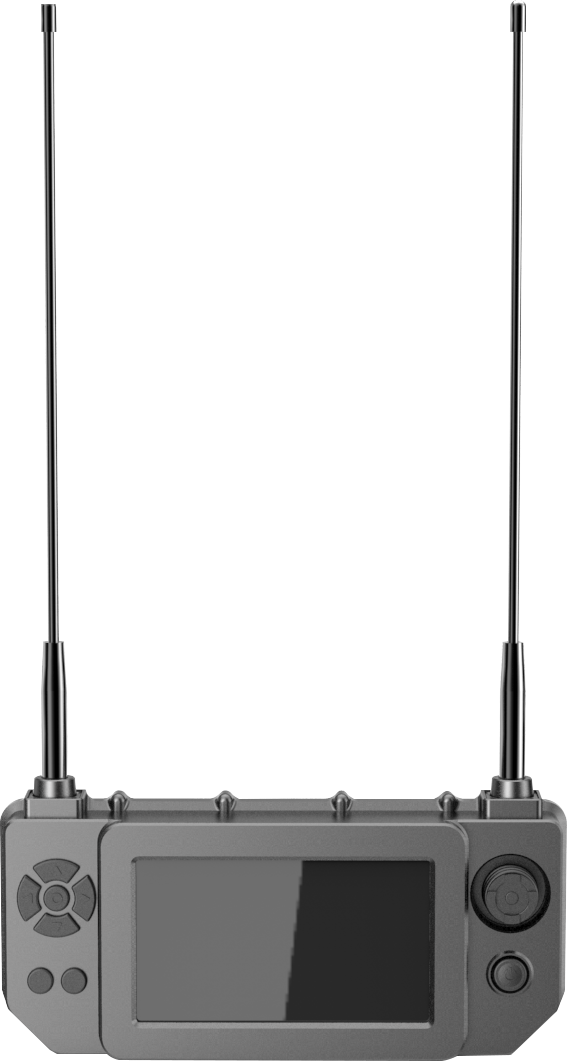

Controller

Battery Life:≥3.5h

Weight:≤1.1kg

Storage Capacity:32G

Control Method:Joystick + Button

Communication

Indoor:≥50m

Outdoor:≥100m

Environmental Adaptability

Operating Temperature:-25℃～+55℃

Protection Grade:IP66
