Application

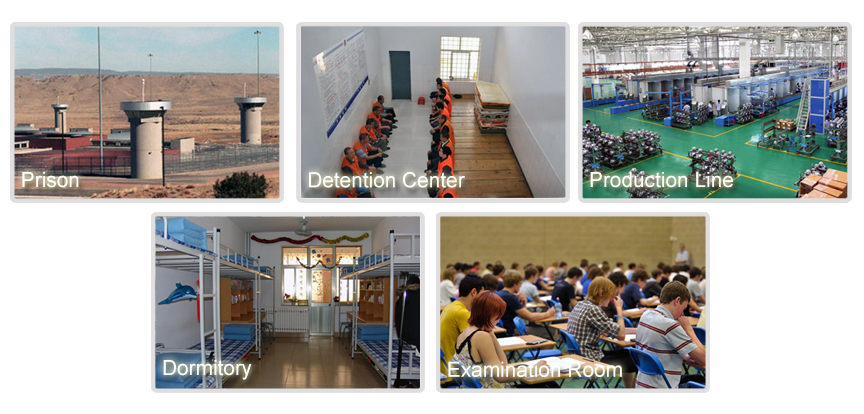

Applied in the Justice Sector(prison jammer, detention centers, labor camp, police, courts, procuratorate);the Education Industry(School examination room, classrooms, dormitories, various social test sites, education and training institutions); Government agencies, administrative institutions meeting rooms; Factories and enterprises warehouses, workshops, production lines; Forces and confidential units, theaters, concert halls, memorial halls ,etc.
Technical Parameters
A:Jamming range: Radius: 10~60m (-75dBm, depending on the distance of base station)
B:Transmission power: The whole set: 30W at maximum, each channel 2~3W
C:Jammed signal type: (Notes:List common formats only)

5GNR:n41/n77/n78/n79

TDD-LTE: B34/B38/B39/B40/B41；

TD-SCDMA: B34/B39；

FDD-LTE: B1/B2/B3/B4/B5/B6/B7/B8/B9/B12/B17/B18/B19/B20/B26;

CDMA: BC0;

UMTS(WCDMA)/HSPA+/DC-HSDPA:B1/B2/B4/B5/B6/B8/B19;

GSM: B2/B3/B5/B8;

Data Service:

5GNR/TD-LTE/FDD-LTE/WCDMA/HSPA+/DC-HSDPA

/EVD0/CDMA1X/EDGE/GPRS/VoLTE/

ViLTE/WiFi2.4G/WiFi5.8G

Twelve modules work independently, RF power of each channel is 2~3W;

Particularly strengthened the power of push for 3G/4G/5G, in full assurance of per channel output power at least 2W;

With expansion space of 6G or other wireless frequency bands in the future；The output channel(frequency band)can support up to 24 channels;

Exquisite structural design,Invisible handle trough embedded in the back,It is not only convenient to carry, but also suitable for wall mounting;

Industrial switch power supply, with precision voltage regulator circuit, to ensure the normal work of the host;

Fully sealed protective casing design, waterproof, dustproof, prevent from sabotage and other questions in special application field;

High temperature resistant environment, can quickly transfer heat to the cooling base (built-in ventilation duct cooling fins), to avoid local heat accumulation;

Professional circulation air duct type heat dissipation base structure, the lower end of the rapid inhalation of natural wind, the upper two sides of the heat removal, to ensure that the equipment 24 hours stable work;

Built in 4 ultra quiet fans to draw out hot air,Adjustable fan speed;No noise during working time;

Stable performance, long service life;

Harmless to human body;
Extension interface with the function of intelligent networking linkage, networking way: power carrier + wireless, or by RS485 or CAN BUS;

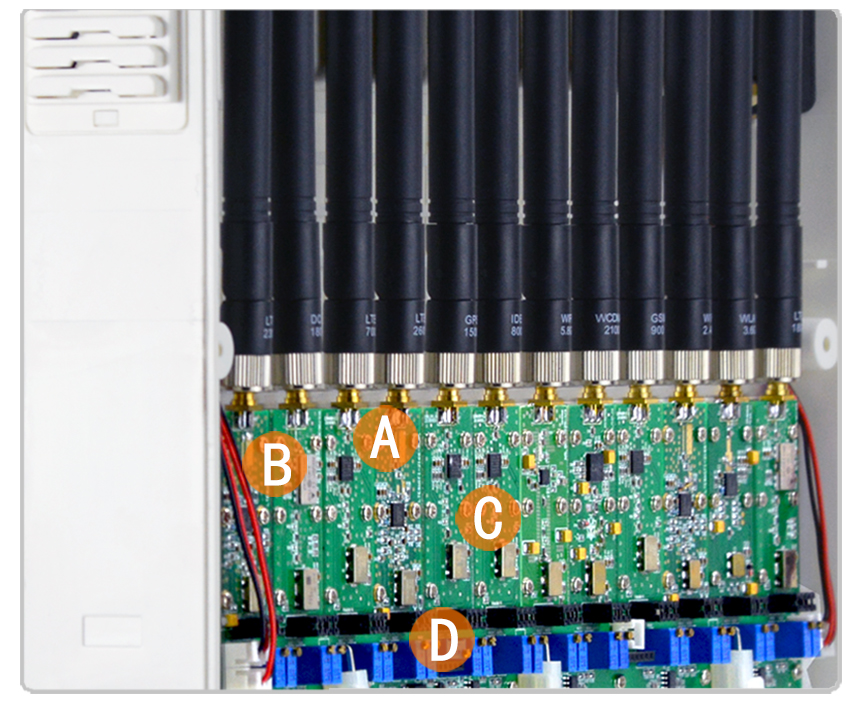

Main Parts

Detailed Technical Parameter

Part name

Consideration

n   Jamming range is closely related to thesignal strength in the field and may be affected by the system of mobile phone;

n   Factors that affect jamming range includebut not limited to: distance of base station, jammer’s orientation, obstacles,wall’s material quality, jammer’s installation height and mode, etc;

n   Strictly factory test, like aging test.When client receives the machine, please check whether there are somethingwrong with our device in transit, such as parts fall off , and contact with dealeror manufacturer, for repairing timely;

n   Installationheight is recommended to be 1.8 to 2.5 meters. Install inareaswithno obstructions between thetargetpositions. Antenna must be vertical, or antenna is vertical upright on the desktopafter breaking off 90 degree, makesure noAC powerlines or other audio and videoline around antenna in range of 0.2 meters;

n   In order to avoid possible interferencewith some electronic devices during use, keep the following common device away from1 to 2 meters: audio, wireless microphones, radios, computers, TV, Wi-Firouters, etc.;

The Motherboard Design

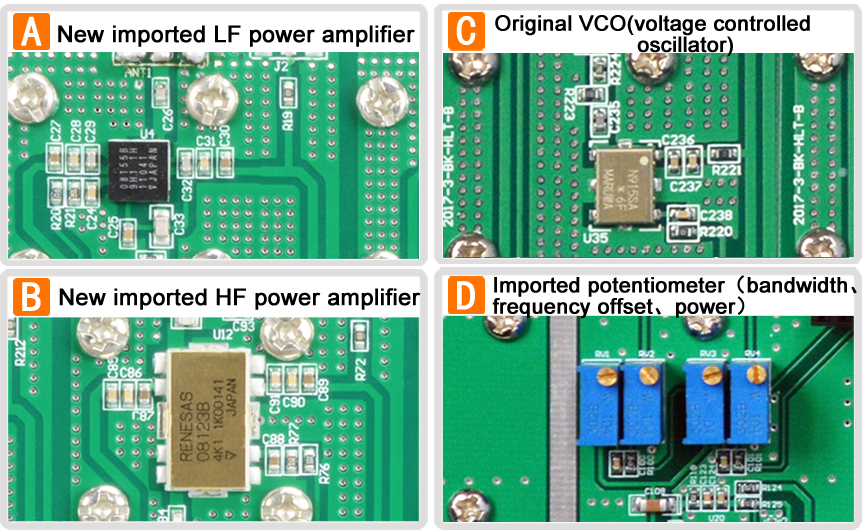

n   The RF channel modular and each channelwork individually

n   All the motherboard components are used SMTtechnology

n   All components are new and original

Advantages

1、Exclusivepower amplifier heat sink, large heat dissipation base design

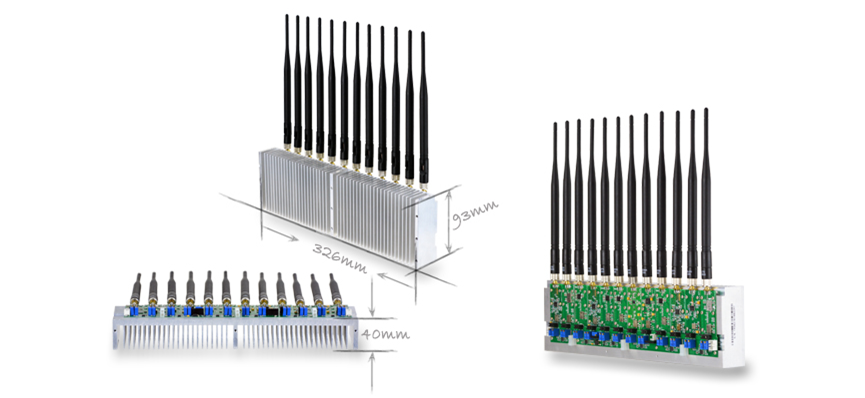

■ 326x93x40mmlarge heat dissipation base，Fast absorption and emissionof heat from power amplifier and power board

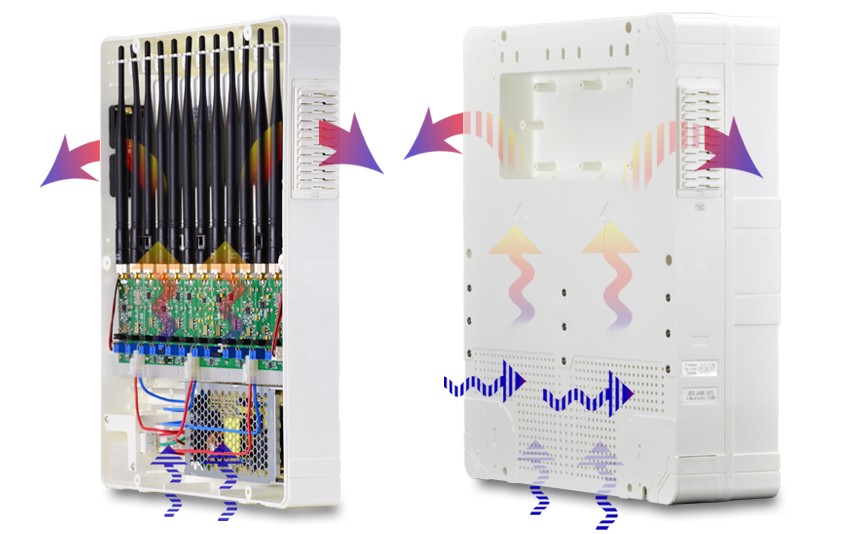

■ Thenatural wind (cold wind) goes up along the fin gap, bringing out the heat onthe cooling teeth quickly and going up

■ Atotal of 4 ultra quiet cooling fans (almost no wind noise, adjustable speed) onboth sides of the upper end discharge the hot air

2、Cold and hot air lower in and up out,waterproof and damageproof shell

3、The upgradespace is sufficient and can be expanded to 24 channels at most

■ Meet the upgrading needs of6G or even 7G in the future;

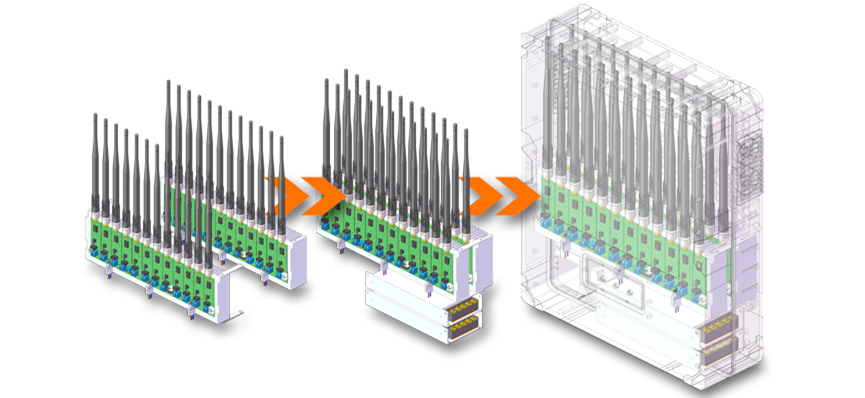

■ Reserve the expansion spaceof dual radiator, dual 12 channel module (24 channels in total) and dual powersupply;

■ Function upgrading,expansion, original parts are all reserved and never wasted.

OEMCustomized and Service

■Frequencyspreading can be done for Wi-Fi, Bluetooth, Intercom and wireless data transmitetc.

■Morethan 50 units can provide screen printing OEM service.

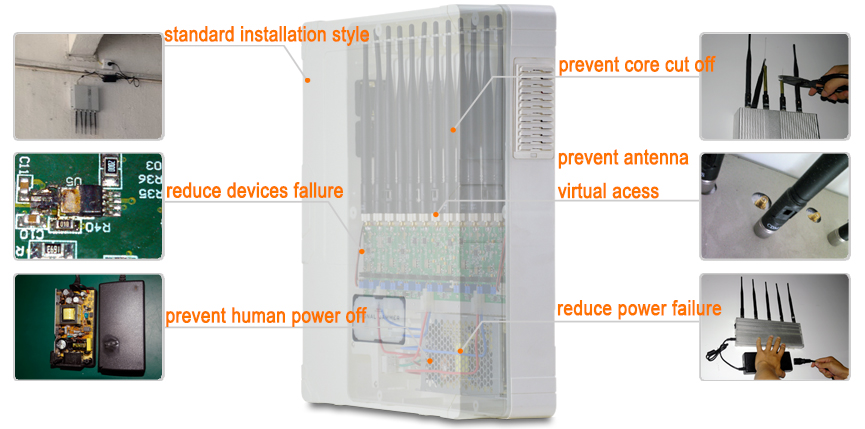

Engineering Application

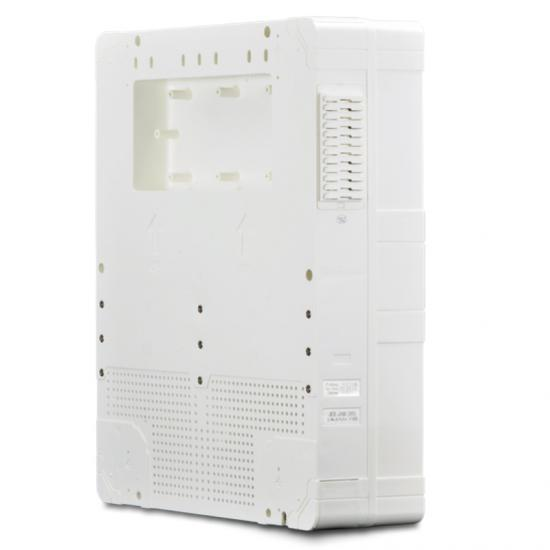

In engineeringapplication, there are reserved hanging mounting holes on the top of machine,mounted on the wall directly.

■ Theheight of hanging hole is 16mm, to ensure the space between device and wall forventilation.

■ Silentfans on both sides of device, strengthened to cool the host and power supply

■ Built-inantenna protect it from personnel sabotage

■ Internalpower supply protect it from sabotage and malicious power off

■ Waterproofdesign, available installation both inside and outside

Field Application
