S-UAV Hand-Held UAV Jammer

Application

The hand-held (GPS/Wi-Fi 2.4G/Wi-Fi 5.8G), with characteristics of easy to carry, flexible to use, and built-in large capacity battery, can be used in the Public Security, Army, the Airport airspace control, the Military restricted zone, the Secret unit, the Sports Events, the Large Gatherings, the VIP security, etc.

System overview

Unmanned aerial vehicle (UAV) is a kind of unmanned aerial vehicle which is controlled by radio remote control equipment and self-contained program control device, In recent years, with the rapid development of UAV industry, UAV has been widely used in traditional and non-traditional security fields. In addition to military applications, UAV also involves scientific research, agriculture, power, transportation, meteorology and many other industries. In just a few years, UAVs have become popular from the small crowd, especially in the application market of civil UAVs, and even go crazy and abuse.

With the rapid, disordered and uncontrolled development of UAV, its negative effects have become increasingly apparent! The hidden dangers and accidents caused by the "black flight" of UAV are frequently reported and forbidden. Some civil UAVs are not only cheap, but also have the functions of stealing photos, recording secretly, monitoring, investigating and Airdropping articles (including contraband and dangerous goods) in addition to aerial photography. They bring great safety to government agencies, military restricted zones, key secret keeping units, prison guards, large sports events, large festival celebrations, important task security, airport airspace, etc. Hidden dangers and management loopholes. Therefore, in order to prevent the security and leakage caused by UAV, the application of anti UAV system or UAV interference countermeasure system is imperative!

In theory, anti UAV system or UAV jamming and countermeasure system. The best way to achieve this is to detect (discover) - interfere - capture (forced landing). However, due to the small size of most UAVs, small power of remote control and data transmission, combined with low altitude and ultra-low altitude flight, no matter radar echo, optical image, audio analysis and other detection means are used, UAVs will be detected due to the reasons of small collective reflection signal, near ground background noise disturbance, complex ground communication signal, high-rise building obstacles, etc. It is impossible to achieve 100% recognition accuracy, and the rate of false and missing reports is very high. Under the condition that the existing detection technology is not perfect and reliable, it is a feasible, more stable and effective solution to effectively interfere and suppress the communication frequency of UAV, such as remote control, positioning and data transmission.

The solution of this anti UAV system is to transmit some jamming signals to the UAV no fly zone and its surrounding areas within a certain range to suppress the commonly used wireless communication frequency band of UAV, including GPS positioning and navigation signal, WiFi2.4G, WiFi5.8G, etc. When the UAV enters the interference signal coverage range, its performance results are: loss of contact, out of control, inertial flight, falling, forced landing, etc.

Technical Parameter

• Jamming Range：Radius1,000m(standard field strength)

• Transmission Power: Integrated equipment≥20W

• Types of Signal: Navigation and location: GPS(L1 1575MHz),

                           Date transmission and picture transmission: WiFi2.4G& WiFi5.8G

• Output Channel:3 output channel, each module can be switched separately

Features

• Hand-held design: Gun like design, one person can control;

• UAV Jamming Gun is Easy to carry, equipped with special aviation box, portable and vehicle carrying;

• High-power, effective shielding radius 1000m;

• Stable performance, perfect ventilation-cool design, the temperature of enclosure will be less than 45℃ after continuous work 2 hours;

• Power supply, using the   lithium iron phosphate battery   with big capacity, rechargeable battery, support   AC charge and vehicle charge;

• Profession: Anti UAV System can shield all kinds of UAVs on the market;

• Personalized custom: for different countries, regions or different shielding requirements, customize different types of shielded signal;

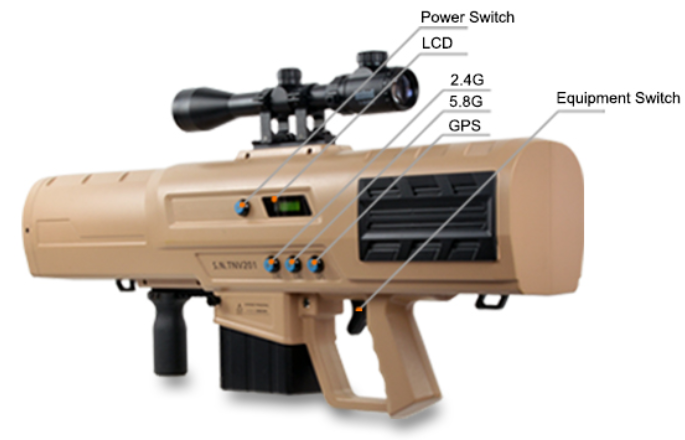

Main Parts

Detailed Technical Parameter

Band Parameter Channel Frequency Average output power

Components

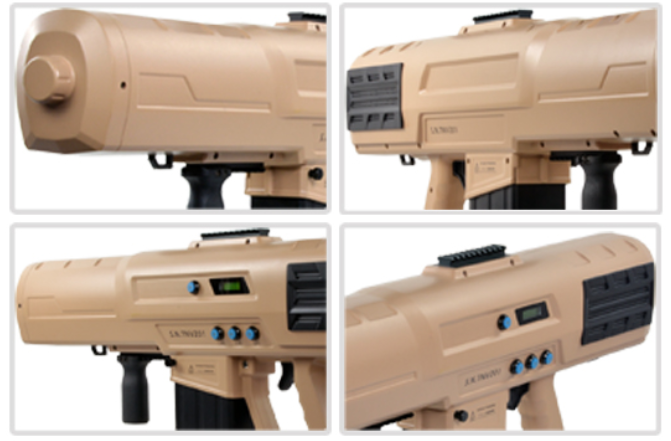

Product Details

Considerations

• All antenna must be screwed on before the power switch on;

• When using for the first time, charge the device under the condition of battery completely depleted;

• Continuous charging must not be less than 12 hours to extended battery life;

• Keep dry and don't near the fire source, don't use the jammer in the place of wet, heat, high voltage or high radiation;

• The nets just used for protecting and hiding the antenna, with the nets or not, according to need to use;

• The antenna should be perpendicular to the ground, to obtain the best shielding effect;

• The warranty will be no sense if any sealed mark destroyed;

OEM Customized Service

Frequency spreading can be done for Wi-Fi, GPS, or customized for special frequency band , etc.

Silkscreen OEM service can be offered for 5 jammers or above.

Neutral can be provided.
