Product Overview

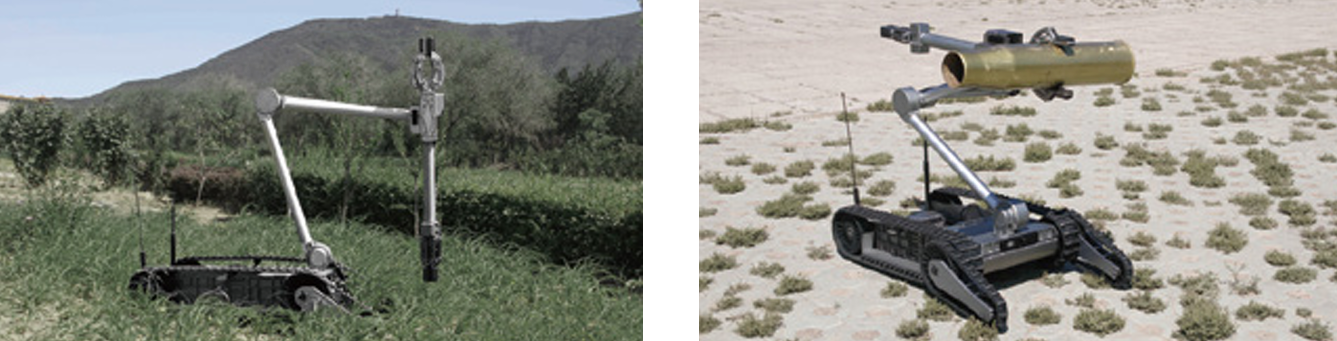

REOD500 inherits the avant-garde design concept of the Hound series robots. It is a comprehensive improvement in performance. It continues the self-developed swing-arm crawler walking platform technology, strengthens the power system, and greatly improves the mobility and obstacle crossing capabilities of the bomb disposal robot. The robotic arm continues the multi-degree-of-freedom integrated design, providing the front-end "claw" with powerful spatial reaching capabilities and stronger clamping performance, greatly improving the robot's ability to handle and transfer dangerous goods.
Features
Stronger robotic arm, larger size
Patented "two-hand claw" technology
Graphical dual redundant operation
Remote 3D real-time display
"X-Y-Z” gripper translation technology based on automatic solution
7-channel video images
8-degree-of-freedom robotic arm
18 expansion tools
Function
Remotely control the device to approach the danger scene, explore the source of danger, take disposal measures or relocate the source of danger according to the mission objectives, and protect front-line workers and the public from personal injury.
Specifications

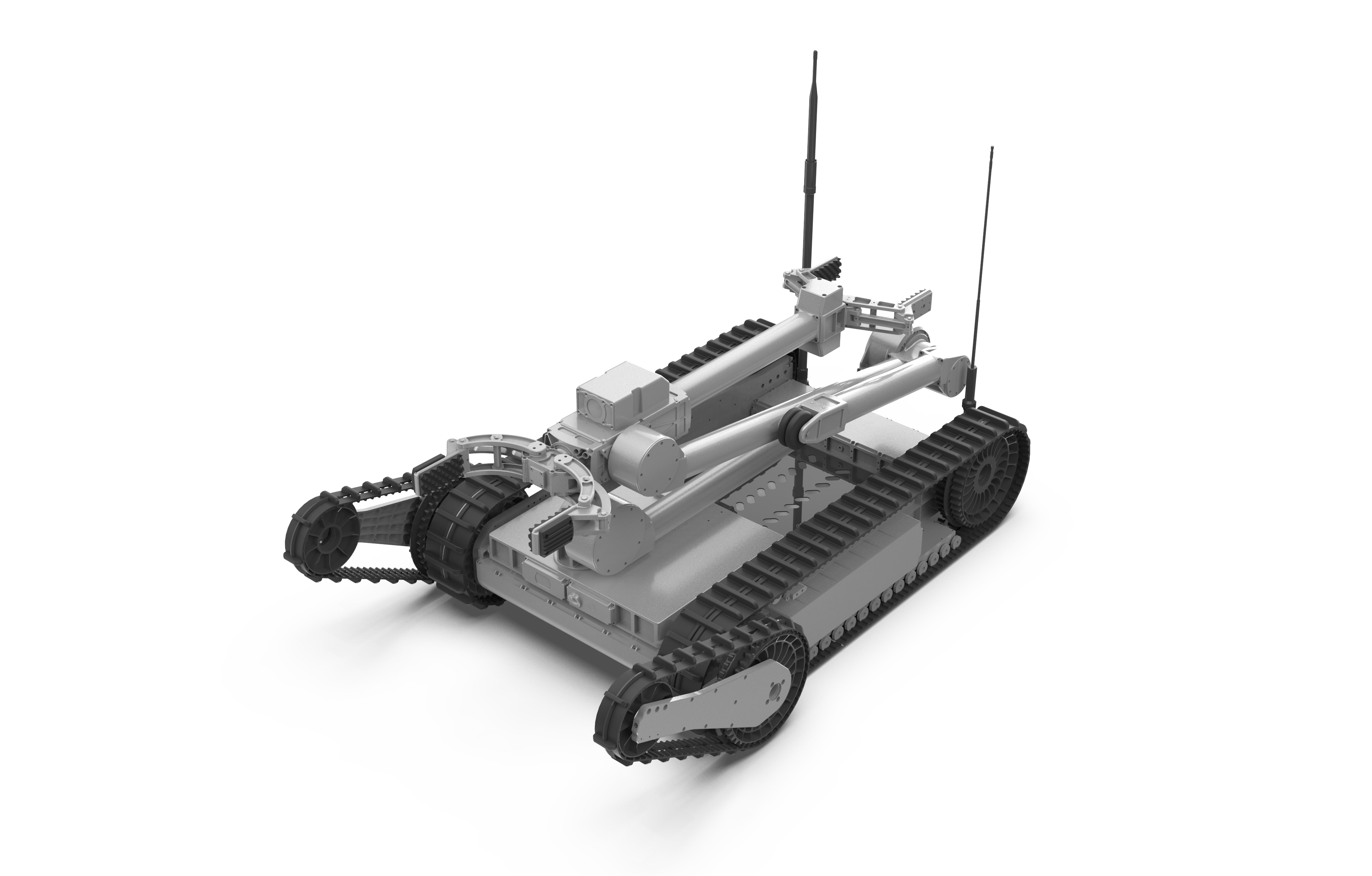

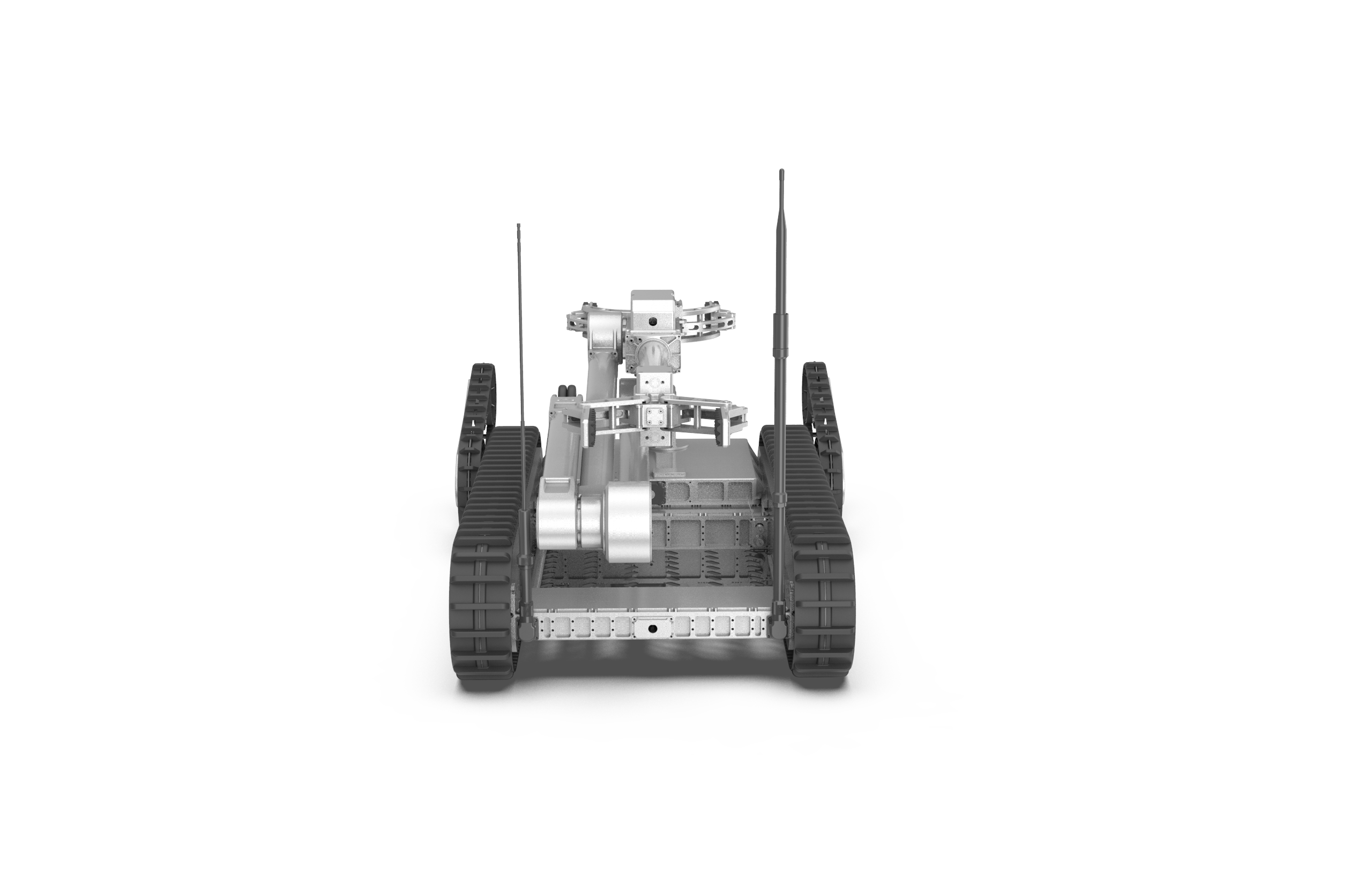

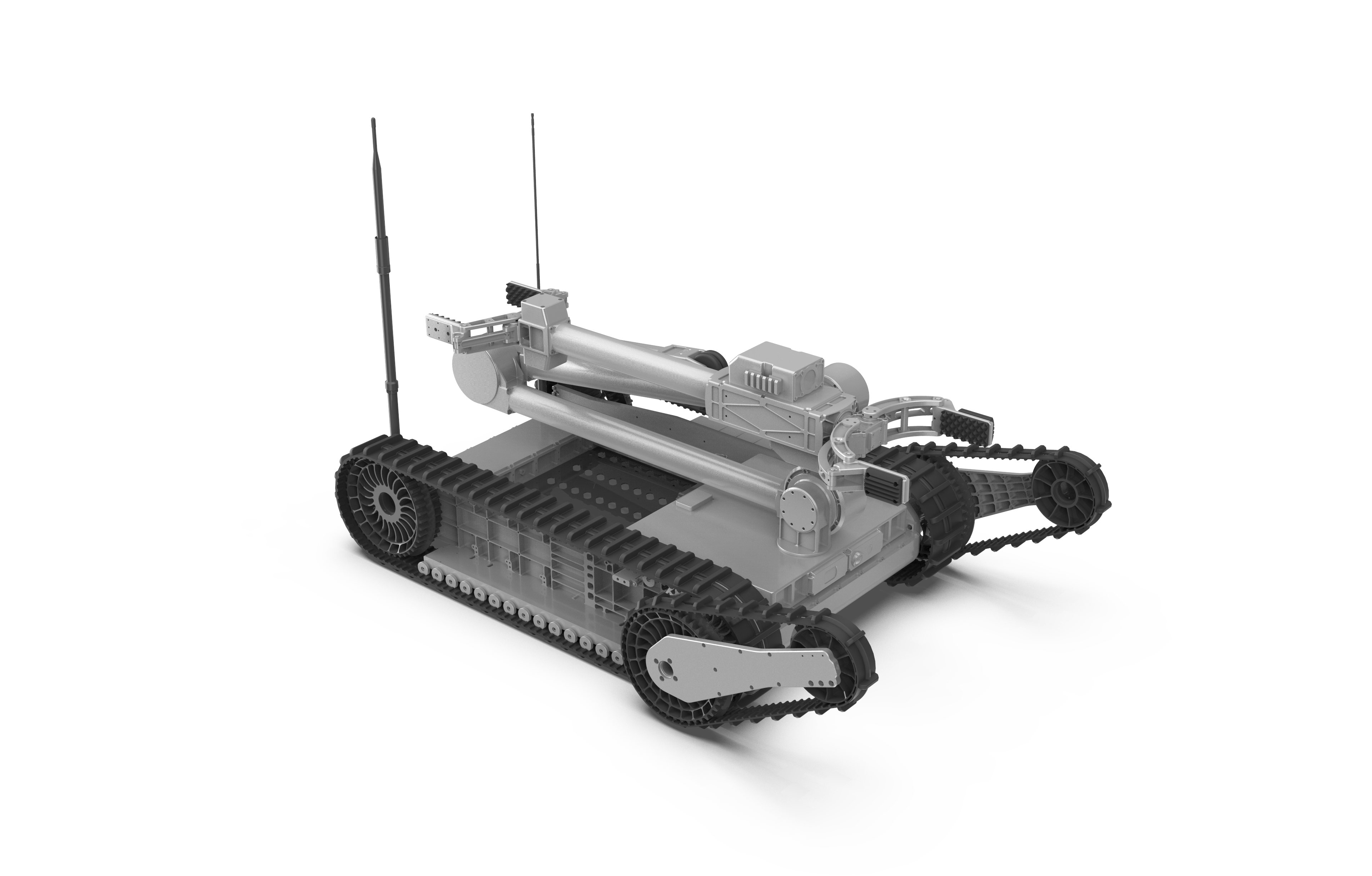

Robot
Dimension：≤950×650×650mm
Weight：≤ 50kg
Max Speed：≥ 2m/s
Vertical obstacle clearance：≥400mm
Ditch crossing width：≥400mm
Climbing Angle：≥45°
Climb Stairs：≥45°
Wading Depth：≥200mm
Battery Life：≥3h
Protection Grade：IP66

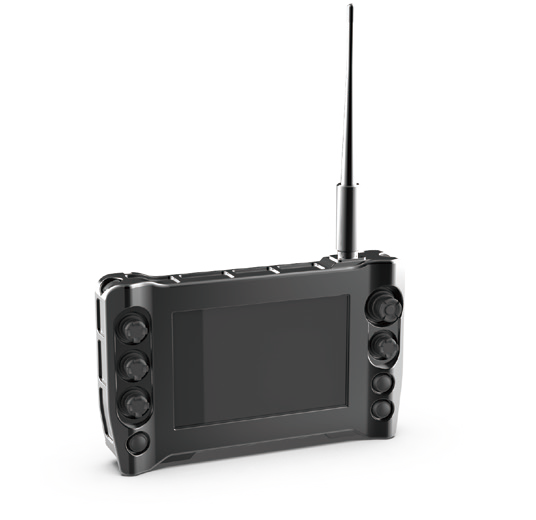

Controller
Dimension：≤270×170×100mm
Weight：≤1.2kg
Screen：7＂LCD
Video Channel：7-Channel
Operation Mode：Joystick + Touch screen
Communication Range：Wired≥100m ;Wireless≥1000m (Outdoor)
Robotic Arm
Clamping in extended state：2000mm
Clamping in retract state：≥40kg
Number of Grippers：2
DOF：8
Protection level environmental adaptability
Robot Platform：IP66
Arm：IP66
Operating Temperature：-40℃～＋50℃
Storage Temperature：-45℃～＋60℃
