Product Overview

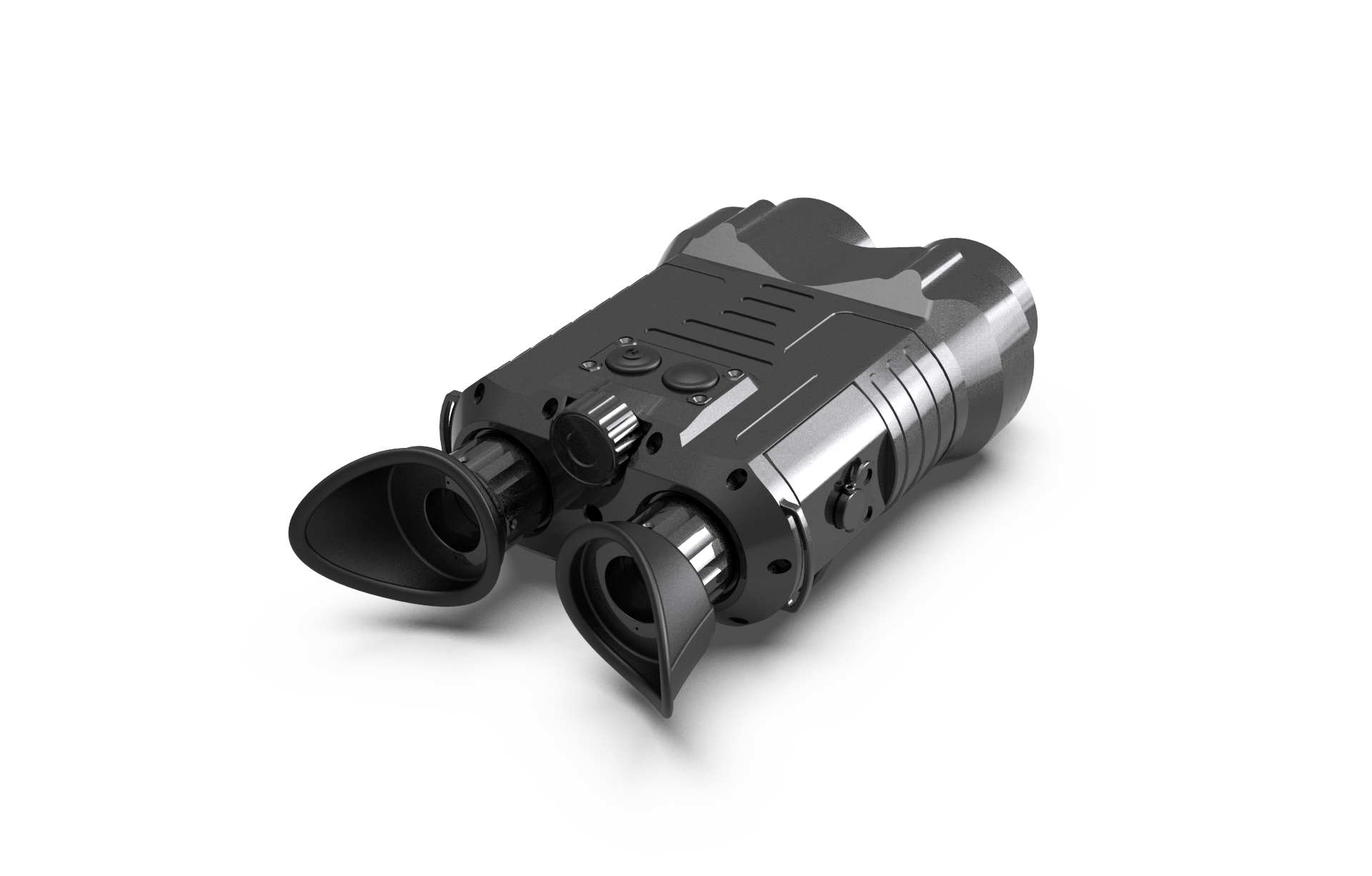

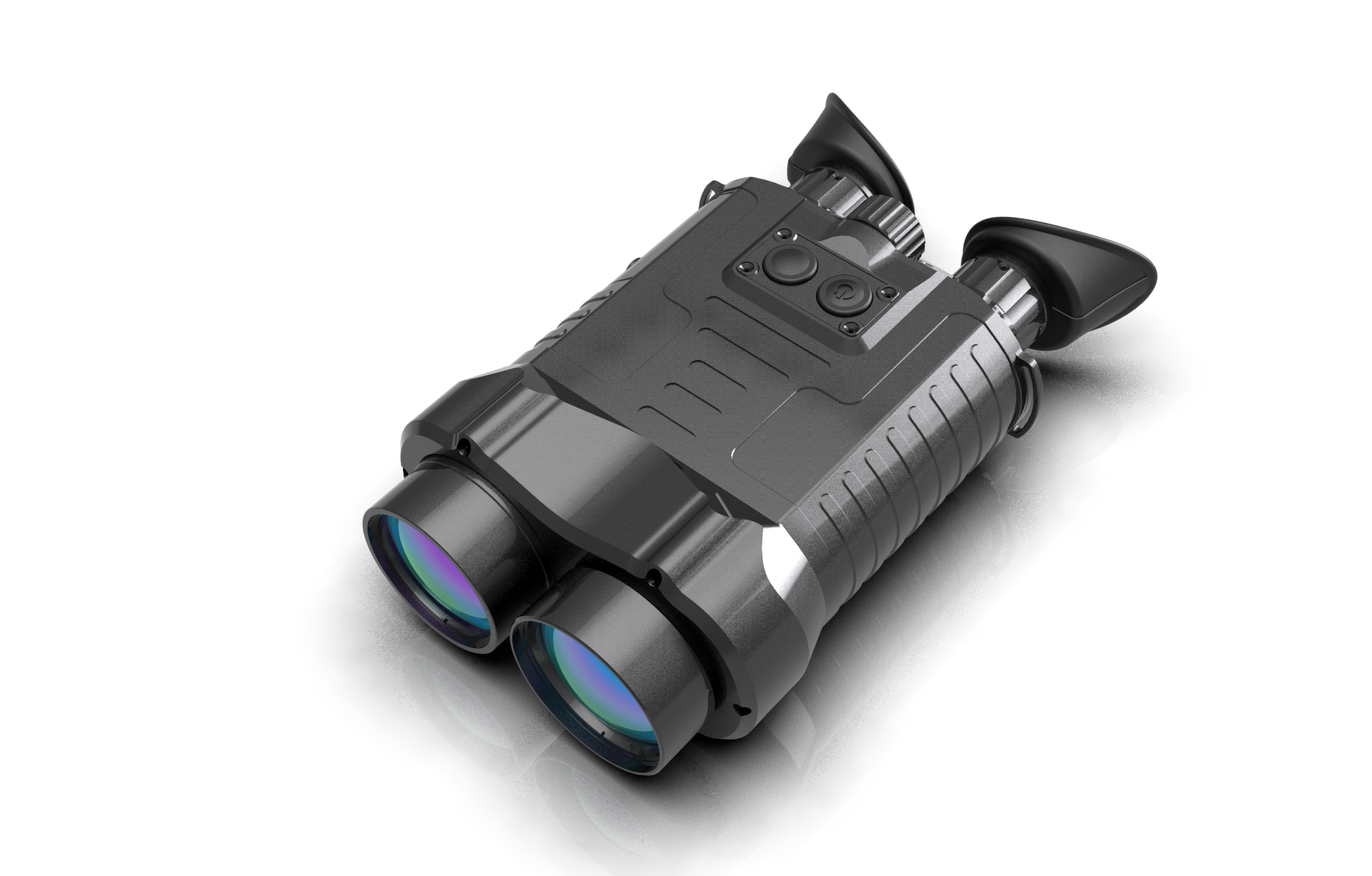

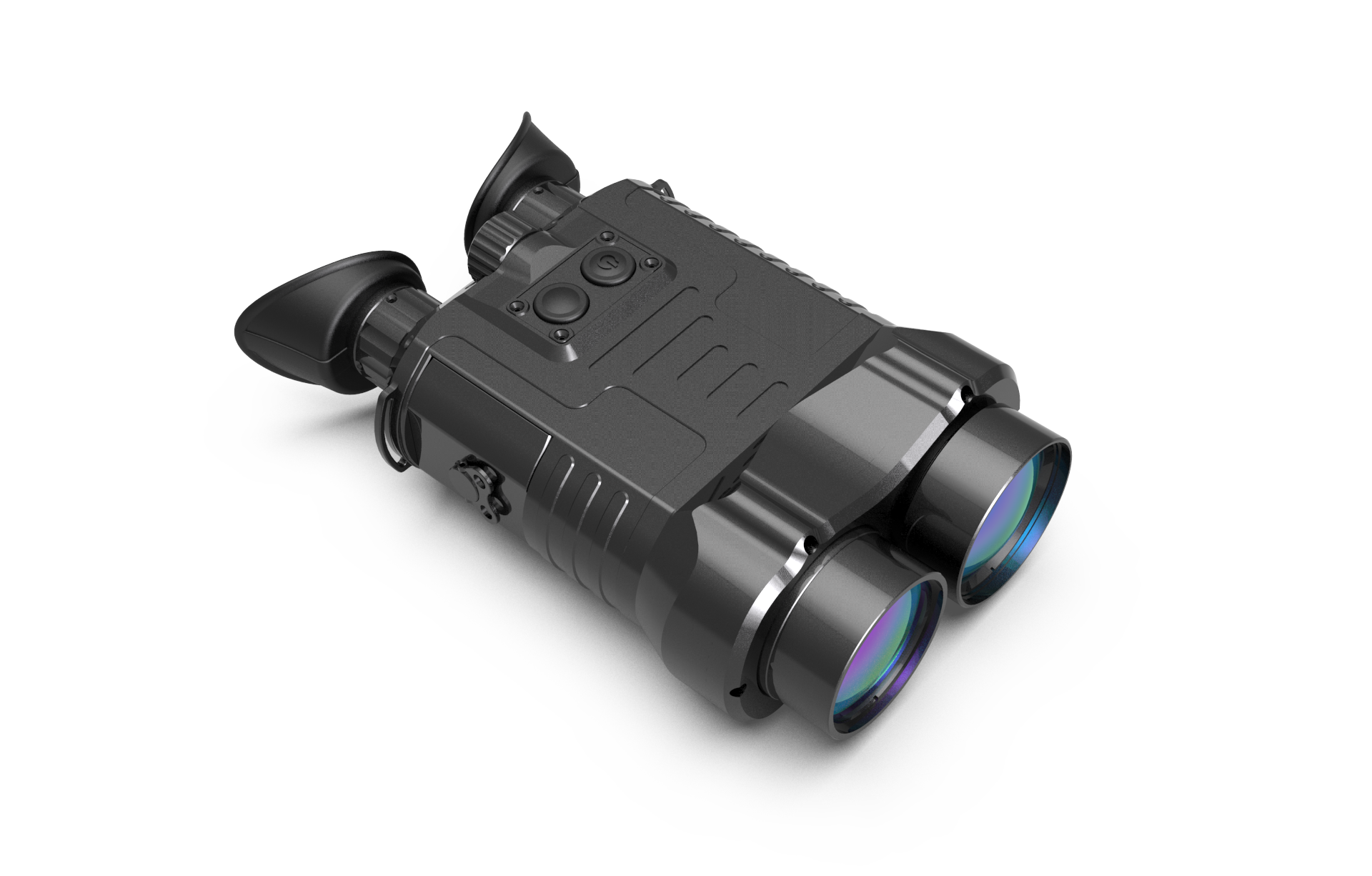

NVD1000 is a portable binocular handheld observation instrument that integrates a
low-light camera and a thermal imager. It can display the video images of the two separately, or display the fused image processed by the image algorithm. It combines the detail advan-tage of visible light images and the sensitivity of infrared images to heat source targets into one, which can not only highlight the main target but also identify scene information. It is particularly suitable for use in scenes with alternating light and dark and complex back-grounds, helping users complete tasks such as covert surveillance, mobile reconnaissance, identification and tracking, rapid locking, and secret recording.
Features
Lightweight and portable, compact struc-ture
Rich image details, prominent subject
4 display modes
5 scene color palettes
Long battery life
Super environmental adaptability
Function
Low light, thermal imaging, fused black and white and fused color
Five scene color palettes: jungle, snow, ocean, city, desert
Target highlighting
Video and photo recording
2x electronic magnification
Automatically turn off the screen when leaving
Specifications

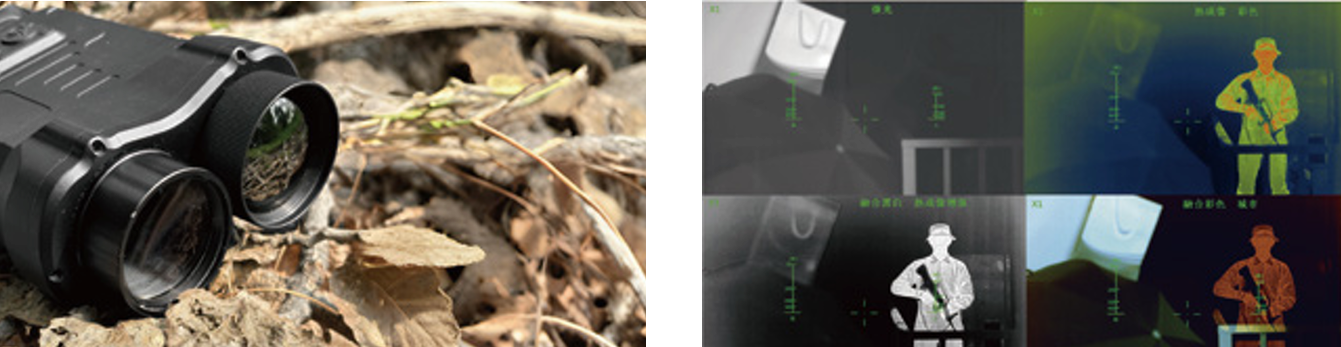

Observation Mode
Low light, thermal imaging, fused black and white, and fused color
Highlight mark function in Fusion Black and White and Fusion Color modes
In the fusion color mode, typical scenes such as jungle, snow, ocean, city, desert, etc. are available.
Recognition Distance
Low Light：The side recognition distance of a medium tank is no less than 300m
Thermal Imaging：The side recognition distance of a medium tank is no less than 800m
Fused Mode：The side recognition distance of a medium tank is no less than 800m
IR Sensor
Resolution：640×512@17um
Focal Length：35mm
FOV：≥16°×12°
Weight：≤1.2kg
Battery Type：Model 18650
Storage Capacity：32G
Battery Life：≥6h
Operating Temperature：-40℃～+55℃
Protection Grade：IP67
Low Light (CCD)
Resolution： 800×600@18um
Focal Length：50mm
