Abilities
l Remote detection of electroniccomponents and metal striking elements at a distance of up to 10 meters
l Determining the location ofelectronic components and metal striking elements in the 16-degree sector
l Indication of the targetlocation using laser illumination
l Two types of radiated signals:pulse modulation of the carrier frequency in the pulse detection mode with aduty cycle of 160 and in the CW mode with a small duty cycle of 20, similar tothe "20K" mode"
l Recognition (identification) ofelectronic components from natural semiconductors (rust, metal-to-metalcontacts, etc.) in CW mode, by listening to the signal from the output of theamplitude detector through a built-in speaker or wireless headphones whenreceiving the 2nd and 3rd harmonics
l The CW mode with pulsemodulation of the carrier frequency with a low duty cycle can be used to detectworking analog radio microphones due to the occurrence of the acoustic feedback
l Additional assessment of the2nd and 3rd harmonic levels by ear based on the frequency of clicks playedthrough the built-in speaker or wireless headphones
l Automatic search for thefrequency channel with the lowest level of interference for operation in adifficult electromagnetic situation
l Automatic and manual poweroutput adjustment
l Manual adjustment of receiversensitivity
Technicalparameters
Transmitter
Bandwidth 3581.5 - 3607.5 MHz
Twotypes of radiated signal:
"Pulse"- Pulse modulation of the carrier frequency with a duty cycle: 160
CW -pulse modulation with duty cycle: 20
Maximumpeak power of radiation in pulse mode (Pulse) 18 W
Maximumaverage radiation power in pulse mode (Pulse) 112 mW
Maximumcontinuous radiation power (CW) 12 W
Average power of radiation in pulse mode (CW) 600 mW
Therange of manual power adjustment 22 dB
Widthof the direction diagram 16 degree
Reciever
Frequencyrate:
Secondharmonic 7163- 7215MHz
Thirdharmonic 10744.5- 10822.5 MHz
Receiversensitivity is not worse -110 dBm
Dynamicrange of the receiving tract (including the attenuator) 30 (10) dB
Theamount of frequency channels when automatically selecting the receiving channel 3
Battery
Li-ionbattery:
Voltage 3.6 V
Capacity 7.8 Ah
Continuousoperation time at maximum power not less than:
InPulse mode 3 h
In CWmode 2 h
Size andweight
Thedevice size:
Inworking condition, without telescopic rod 47х32х19 cm
In foldcondition, without telescopic rod 32х32х22 cm
Weightin working condition 1.5 g
Thesize of the bag 42х24х34cm
Weightin transport package 4.8 kg
Exportpackage dimensions 48х34х27cm
Weightin export package 4.1 kg
Operatingterms
Operatingtemperature range from +5 to+40°С
Equipmentkit

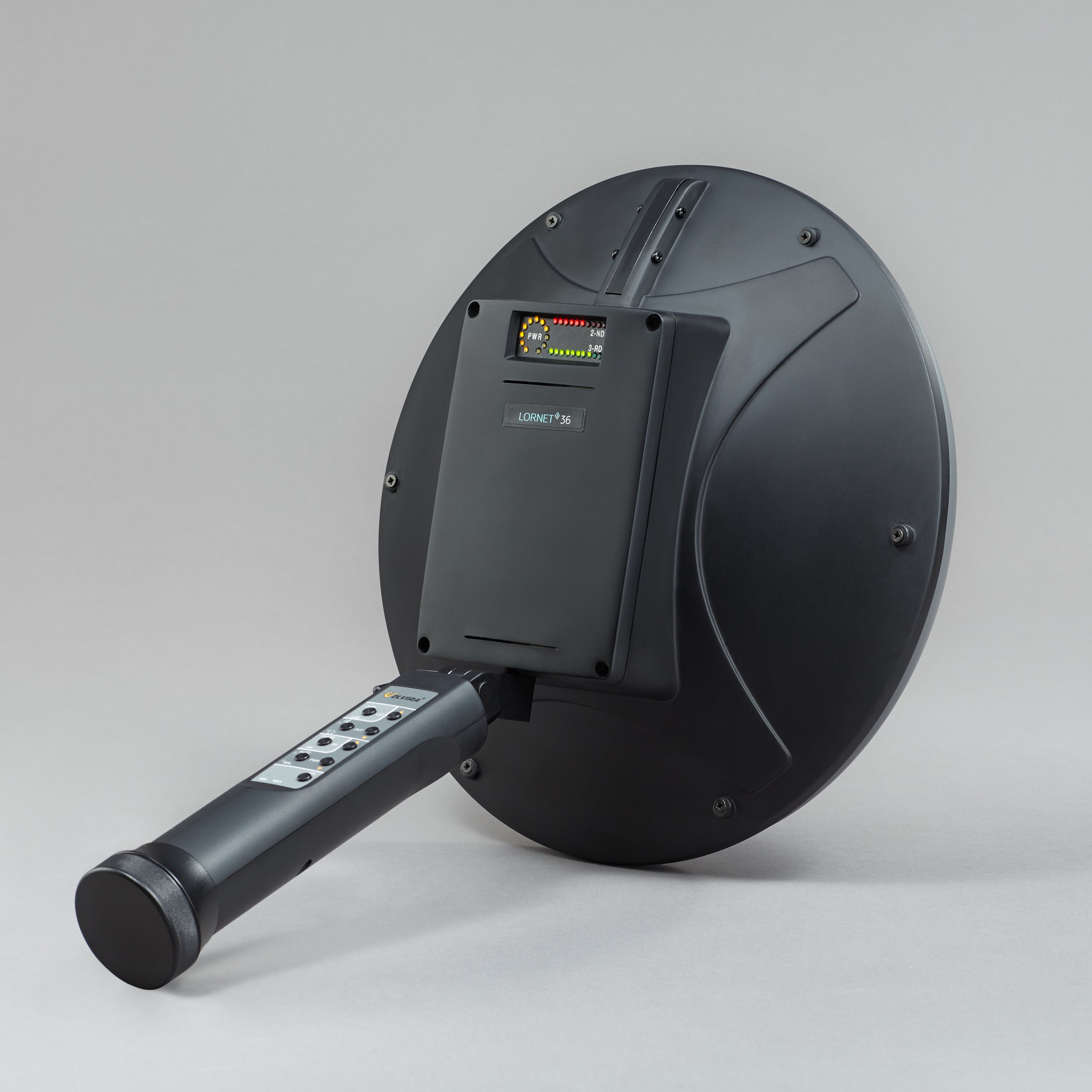

l Receiving and transmitting unitwith remote control handle and built-in battery container
l 2 (two) replaceable (Li-ion)rechargeable batteries (4 V)
l Charging unit for rechargeablebattaries
l 220V battery charger forrechargeable batteries
l Wireless headset with radioreceiver
l AC adapter (220V) for radioreceiver
l Transport bag-stowage
l Documentation (operator'smanual, passport)
